Comparison of Tungsten Carbide

ISO Code Shinwon Tech Daegu Tech Shinseng Everloy S/V
K20 K20 K20 G2 KD05 H6N
K30 K30 K30 K30S KD10 H9N
D20 D20 GF20 KD20 H12N
K40 V40 DX2   KG40
V50 DX5 SX5 KD40 H15N
M8 D65 SM8   H20N
E40 E35 DR35   H11C
K10-K30 SF12 UF12 SF12 EF05
K30-K40 SF22 UF2 KF12
K30-K45 SF18 UF15     H15F
SF20 UF20   EP20


Grades and properties of Sinwon Tech Tungsten Carbide

Grade ISO Particle
Size(㎛)

Gravity
(g/㎤)

Hardness
(HVA)

TRS
(kgf/㎟)

 Application
K20 K20 1.3 15.09 92.5 350 UP Tool tip for carpentry
K30 K30 1.8 14.68 91.2 340 UP Ram, Cutter
V40 K40 1.8 14.40 88.0 370 UP Corrosion-resistant materials
E10 . 4.3 14.90 91.0 300 UP Concrete drills
E40 K40 6.0 14.50 88.6 300 UP Shock-resistant materials
E50 . 6.0 14.15 87.5 300 UP For corrosion-resistance and shock-resistance
E57 . 6.0 13.98 86.8 340 UP For corrosion-resistance and shock-resistance
H36D . 20 14.30 86.5 250 UP Hot extrusion molding
NM5D . 1.3 13.99 89.4 360 UP Demagnetized molding
D20 K30 1.3 14.35 91.0 350 UP High corrosion-resistance
M8 K40 6.0 13.20 83.0 300 UP For corrosion-resistance and shock-resistance
SF12 K10-K30 0.5 14.30 92.5 380 UP Lead Frame Punch
SC31 . 0.5 14.80 90.5 350 UP Lead Frame Punch
SF18 K30-K45 0.5 14.10 90.5 400 UP Lead Frame Die
SF20 6.0 13.50 91.5 350 UP Lead Frame Die
SF22 K30-K40 0.8 14.30 92 260 UP POT
SHR05 . 0.6 14.50 89.0 280 UP

Hot extrusion roll
Finishing
(Wire Rod)
SHR06 . 0.6 14.30 89.5 280 UP
SHR30 . 0.6 14.11 86.5 290 UP
SHR35 . 0.6 14.10 86.5 280 UP

Special steel of hot extrusion roll
Finishing
SHR40 . 0.6 13.82 86.4 280 UP

Hot extrusion roll
Intermediate
SHR60 . 0.6 13.55 84.3 280 UP
SHR61 . 0.6 13.50 85.0 290 UP
SHR70 . 0.6 13.33 84.0 280 UP
SHR80 . 0.6 13.00 81.0 270 UP

Roll
Intermediate,
Deformed Bar
SHR90 . 0.6 12.75 80.0 260 UP
SHR91 . 0.6 12.80 82.0 270 UP

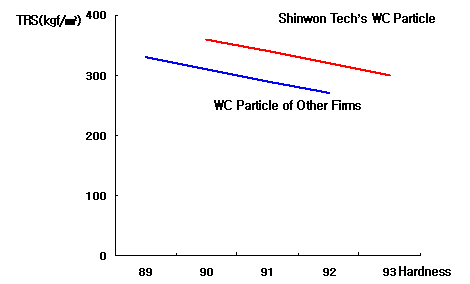

T.R.S. (Transverse Rupture Strength)


Grade WC particle size (㎛)

Gravity
(g/㎤)

TRS
(㎏f/㎟)

Hardness(HRA)

 Application
SF-22 0.8 14.04~14.26 260~355 91.2~92.2 POT & PLUNGER

The tungsten carbide of Shinwon Tech has a more delicate WC crystalline organization than ordinary tungsten carbide and has a greater coherence with Co, which provides great dispersion strengthening and particulate reinforced effects and higher solidity and attraction.
Furthermore, the size of WC particles has become smaller and the thickness of the Co layer between the WC particles has become greater, which has led to the enhancement of the mechanical characteristics of tungsten carbide. This in turn has led to an increase in compound’s uniformity between Co and WC and to a more delicate WC Size ( ~0.2㎛), both of which contribute to the amelioration of mechanical characteristics such as the bending strength and corrosion-resistance to maximize the product’s lifespan.
